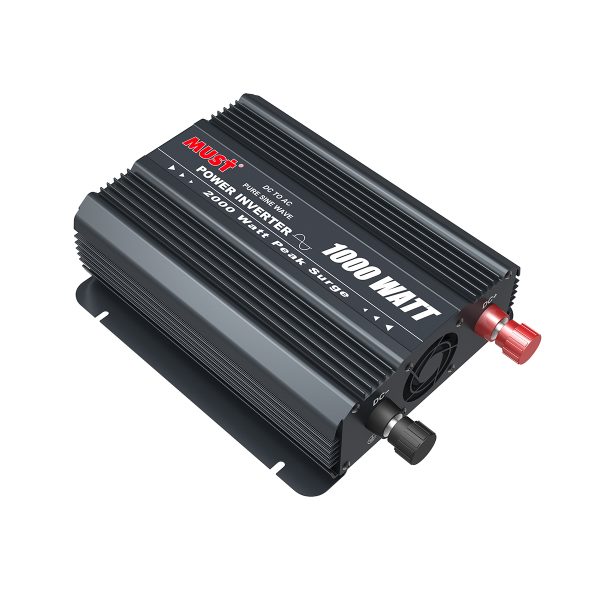

PI1500 Series (1000W)

Pure Sine Wave Inverter

PI15 series is a pure sine wave inverter, high frequency machine solution, the product is small size, the solution is reliable and stable, the main function is to invert the DC 12VDC battery or 24VDC battery to AC 230VAC or AC 120VAC output, mainly used for emergency use Electricity, car inverter, outdoor electricity and other occasions.

Features:
• Input Voltage 12V / 24V DC optional
• Output Voltage 120V / 230V AC optional
• Portable power for AC products, AC outlets for connecting multiple loads
• High efficiency converts virtually all of the battery’s power to AC
• Mounting brackets for convenient installation
• WIFI/BMS Optional
• Overload and over temperature shut down
• Low voltage and over voltage alarm/cut off
• Short circuit protection

Specification:

MODEL PI15-1012 PI15-1012LV PI15-1024 PI15-1024LV
Battery DC Input
Input Voltage 12VDC 12VDC 24VDC 24VDC
Low Voltage Protect Delay 2 seconds
Low Voltage Warning 10.5VDC(PB) 11.6VDC(LI) 21.0VDC(PB) 23.2VDC(LI)
Low Voltage Protect 11.5VDC(PB) 12.0VDC(LI) 23.0VDC(PB) 24.0VDC(LI)
Low Voltage Restoring 12.5VDC(PB) 12.8VDC(LI) 25.0VDC(PB) 25.6VDC(LI)
Over Voltage Protect 14.7VDC(PB) 14.5VDC(LI) 29.4VDC(PB) 29.0VDC(LI)
Over Voltage Restoring 15.0VDC(PB) 14.8VDC(LI) 30.0VDC(PB) 29.6VDC(LI)
Note: Parameters (PB) Lead-acid Battery / (Li) LiFePO4 Lithium Battery Pack-12V(4 Series) 24V(8 Series)
Inverter AC Output
Default Power 1000W
Peak Power 2000W
Output AC Voltage 230V 120V
Output AC Frequency 50Hz 60Hz
Output Wave Pure Sine Wave
Output Wave THD < 3%
USB
USB Output USB A type – 5V 1.5A
Protection
Battery Input Protection Low Voltage Protection, Over Voltage Protection
Inverter Output Protection Output Overload, Short-Circuit, Over Temperature Protection
Display
LED Display Red: Error ; Green: System OK
LED Digital Display Display Battery Voltage, Output Power, Output Voltage, Error Numbers
Communication
PC(Default) USB B type Socket
WIFI(Optional) USB A type Socket
BMS to Li Battery(Optional) RJ11 type Socket
Efficiency
Peak Conversion efficiency 90%
Environment
Protection Degree IP32
Working Environment Indoor Fan cooling
Environmental temperature 0~45°C
Ambient humidity 20%–90%, No condensation
Altitude ≤3000m
