Single product

LP1800 Series (51.2V-100Ah)

LiFePO4 Battery 5120Wh

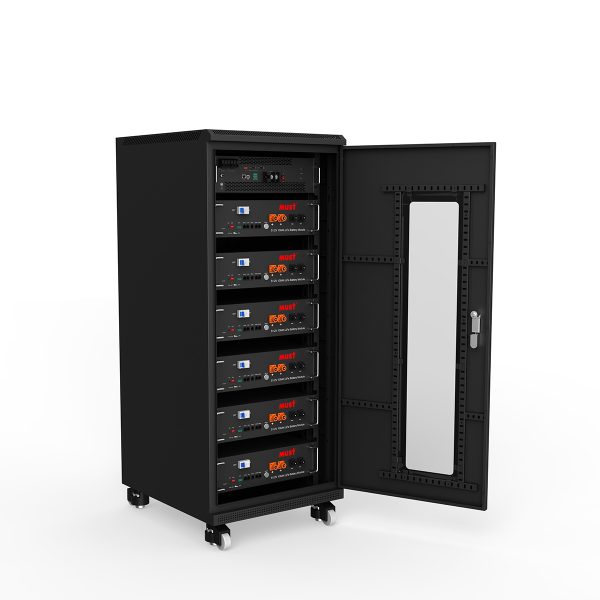

MUST’s 19 inches rack standard backup battery is based on Lithium iron phosphate battery, It has been designed to provide backup power for telecom equipment or energy storage system in household. It has excellent safety, high energy density, long lifetime, very nice temperature performance, green power newly of excellent safety and high reliability.

FEATURES:

High cycle life
6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost.

Longer service life
Low maintenance batteries with stable chemistry.

Built in circuit protection
Battery Management System (BMS) is incorporated against abuse.

Better storage
up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

Specification:

MODEL LP18-48100
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Nominal energy 5120Wh
Life Cycles 6000 Cycles (25℃, 80% DOD)
Recommended Charge Voltage 58.4V
Recommended Charge Current 20A
End Of Discharge Voltage 44V
Standard Method Charge 20A
Discharge 50A
Maximum Continuous Current Charge 100A
Discharge 100A
BMS Cut-Off Voltage Charge 58.4 V (3.65V/Cell)
Discharge 32.0V (2s) (2.0V/Cell)
Temperature Charge -4 ~ 113 ℉ (0 ~ 45℃ )
Discharge -4 ~ 131 ℉ (-20 ~ 55 ℃ )
Storage Temperature 23~95 ℉ (-5~35℃ )
Shipment voltage ≥51.2V
Module Parallel Up to 15 units
Communication CAN2.0/RS232/RS485
Case Material SPPC
Dimension (L x W x H) 482 x 480 x 133mm
19.0 x 18.9 x 5.2”
Approx. Weight 97 lbs (44 kg)
Charge Retention And Capacity Recovery Capability Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
