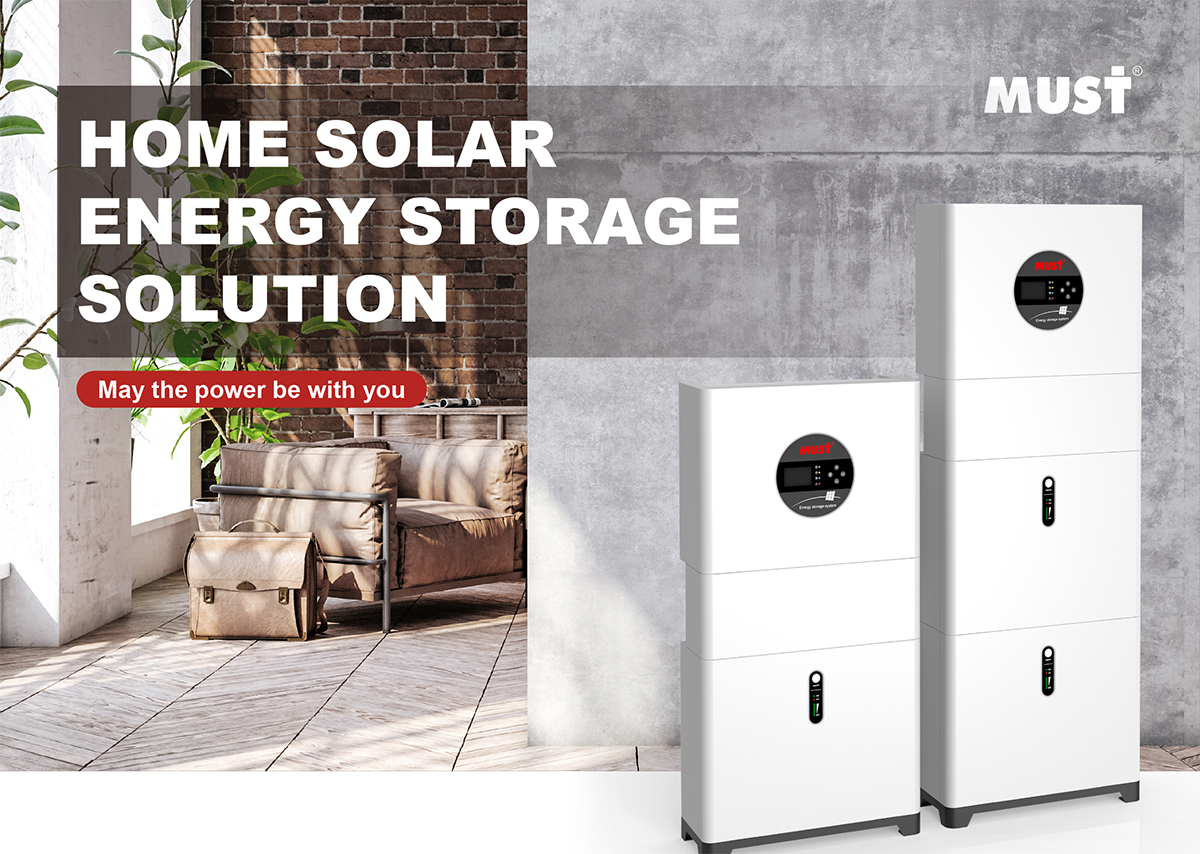

HBP1100 Series (5/6KW)

All in One Solar Energy Storage System 5120Wh/10240Wh

The HBP1100 energy storage system is an all-in-one solution that integrates a hybrid solar inverter and a lithium battery into one unit. This model combines functions for both off-grid and on-grid energy management, making it easy to store solar energy in your home battery.

The flexible modular system can be designed based on your daily household consumption. The HBP1100 ESS makes it easy to select the priority of power supply, allowing you to either store the energy for self-consumption or sell it back to the grid.

The HBP1100 ESS is the best emergency energy solution for villas, apartments, hotels, and shopping centers.

  • Lithium battery modular capacity: 5120Wh / 10240Wh
  • Self-consumption and feedback to the grid
  • Multiple working modes: energy storage mode, load priority mode, power selling mode, and a high-efficiency mode (six time periods are provided to set different modes to achieve peak-shaving and valley-filling, maximizing economic benefits)
  • Built-in BMS, supports charging and discharging according to BMS requirements
  • Supports connection with a generator
  • Automatic switch-over from the line to the battery

Specification:

Model HBP11-5048 HBP11-6048
Nominal Battery System Voltage 48VDC
INVERTER OUTPUT
Rated Power 5000W 6000W
Waveform Pure Sine Wave
Nominal Output Voltage RMS 220~240Vac
Output Voltage Regulation +10/-18%
Output Frequency 50Hz/60Hz
Inverter Efficiency (Peak) 97%
Typical Transfer Time 10ms, 15ms max
AC INPUT
Voltage 230VAC
Voltage Range 180~280Vac
Frequency Range 47.5~52.5Hz / 57.5~62.5Hz
BATTERY
Note: Below Parameters base on one LiFePO4 Lithium Battery Modular
Battery 51.2VDC 100AH 5120/10240Wh
Low Battery Cutoff 44VDC
Low Battery Alarm 46VDC
Low Battery Voltage Recover 48VDC
High Voltage Alarm 58.5VDC
High Battery Voltage Recover 57.5VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 120~500VDC
Maximum Solar Charge Current 100A 125A
Maximum AC Charge Current 100A 125A
Maximum Charge Current 100A 125A
Charger Voltage 56.5VDC 56.5VDC
Charging Current 100A 100A
Charging Time 1-2 hours 1-2 hours
Overcharge Protection S.D. 60VDC 60VDC
Output
AC Output 230Vac (Terminal)
BYPASS & PROTECTION
Nominal Input Frequency 50Hz or 60Hz
Circuit breaker FUSE
Output Short Circuit Protection 80A 90A
Max Bypass Current 23A 27A
OTHER
Operating Temperature Range -15℃ to 40℃
Ingress protection rating IP65
Audible Noise 60dB MAX
Display LED+LCD
